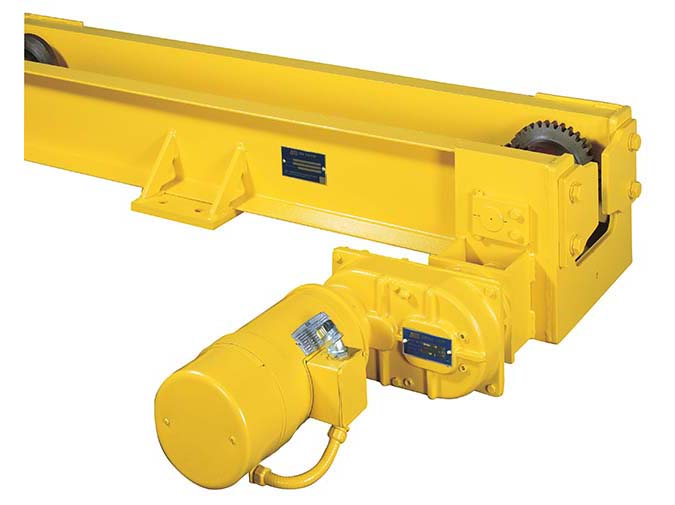

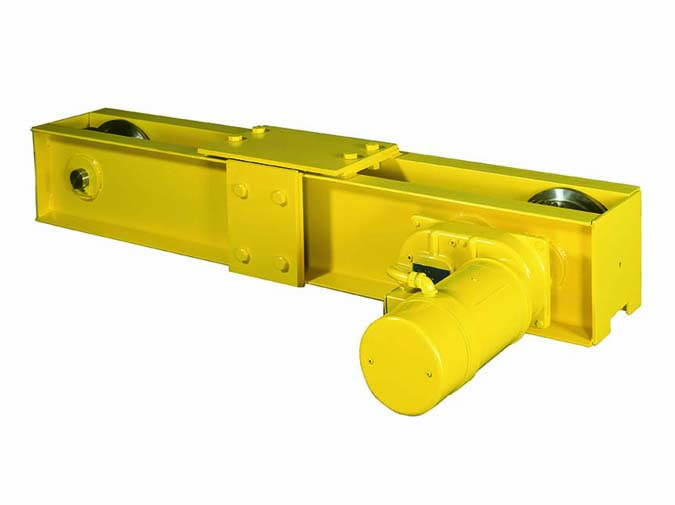

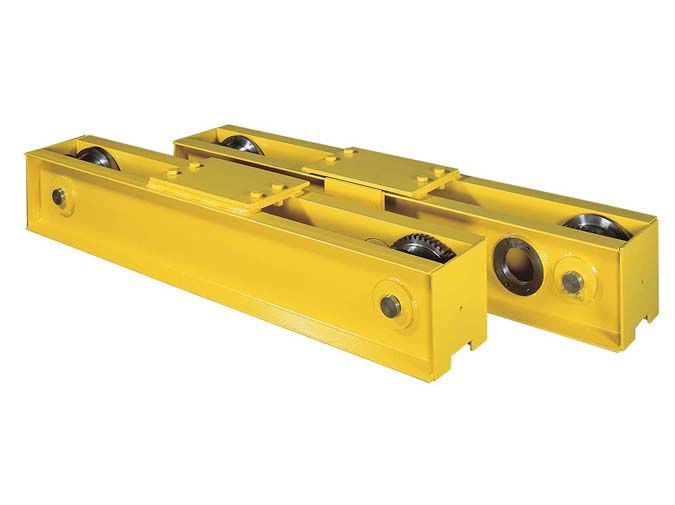

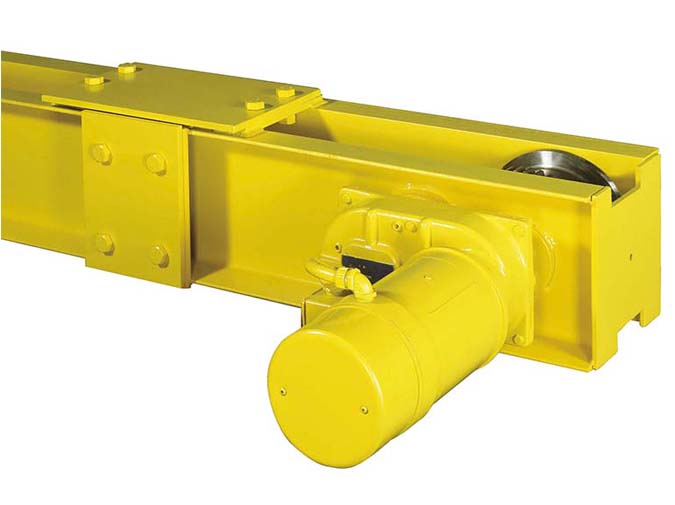

WRIGHT® Series 425 Under Running End Trucks

Features

Option Placeholder Image

Push, hand geared and dual motor applications.

Multiple Applications
Option Placeholder Image

Bolted girder connection plates and flange type gear reducer mounting plates.

Plates
Option Placeholder Image

Dual tread, hardened wheels for wide flange shapes.

Wheels
Option Placeholder Image

Heavy duty construction that is built to last.

Construction
Option Placeholder Image

Rubber Bumpers
Option Placeholder Image

Rail Sweeps
Option Placeholder Image

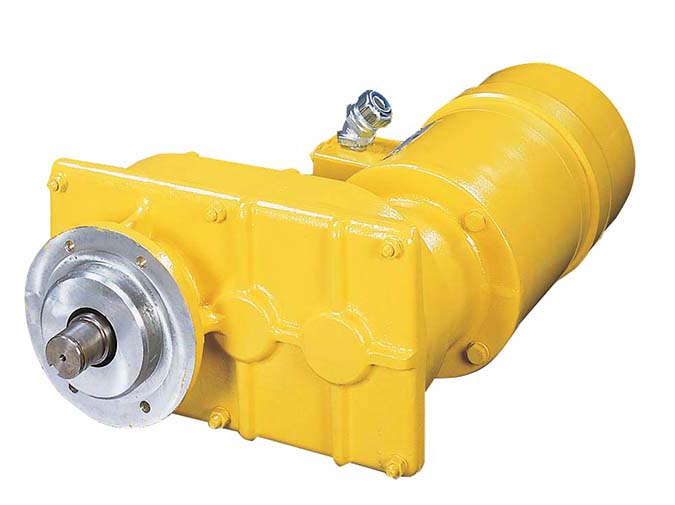

30 minute, Class "F" insulation UL & CSA approved motors. Motors are U.S. manufactured and protected with automatic reset normally ...Read More

Motors
Option Placeholder Image

Single speed motors

Motors
Option Placeholder Image

Direct Bolt Flange Mounting
Option Placeholder Image

Cast aluminum gasketed housing.

Housing
Option Placeholder Image

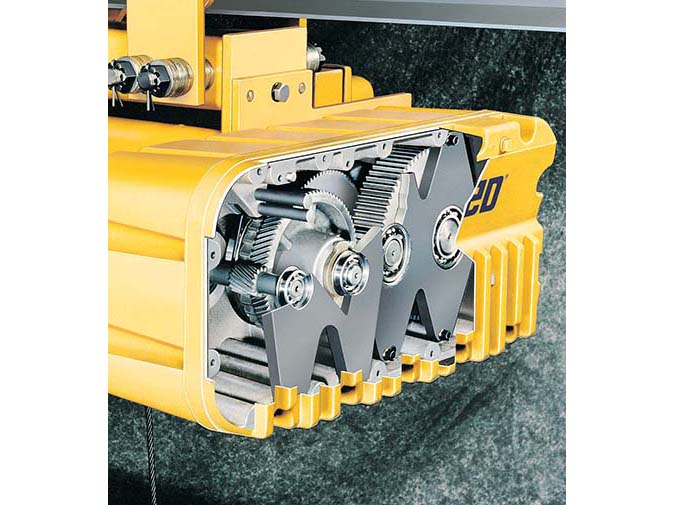

Case hardening gearing.

Gearing
Option Placeholder Image

Adjustable A.C. disc type brakes.

Brakes

Models & Specs

Wright Under Running End Trucks Crane Drives Controls

Gallery

WRIGHT® Series 425 Under Running End Trucks

Product Overview

WRIGHT® end trucks, crane drives and accessories provide years of worry free operation.

Engineered to fit virtually any application.

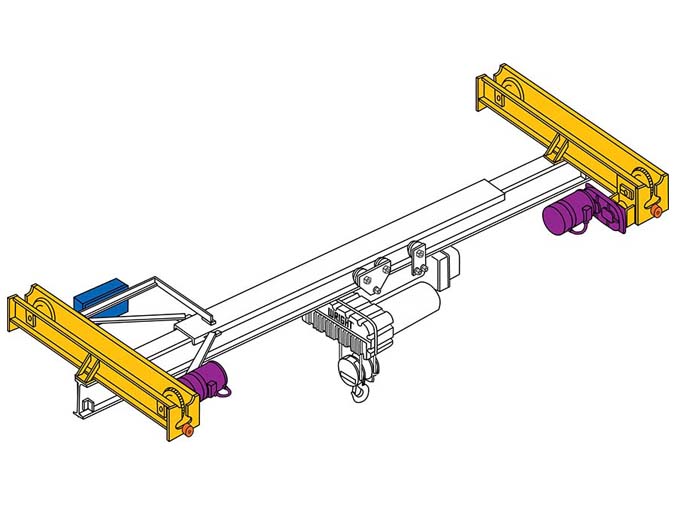

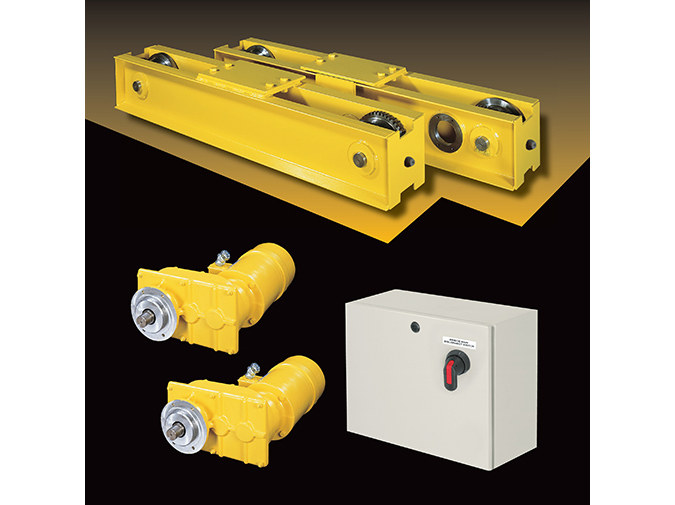

Wright® interchangeable components allow you to customize a crane to fit your requirements. Choose from the vast selection of single components to configure your system, or pick from one of our crane kit selections which includes end trucks, drives with motors and brakes and controls.

Quality and durability beyond your expectations
Wright® crane products and accessories are backed by over 100 years of lifting experience. Simply put, they are built to last.

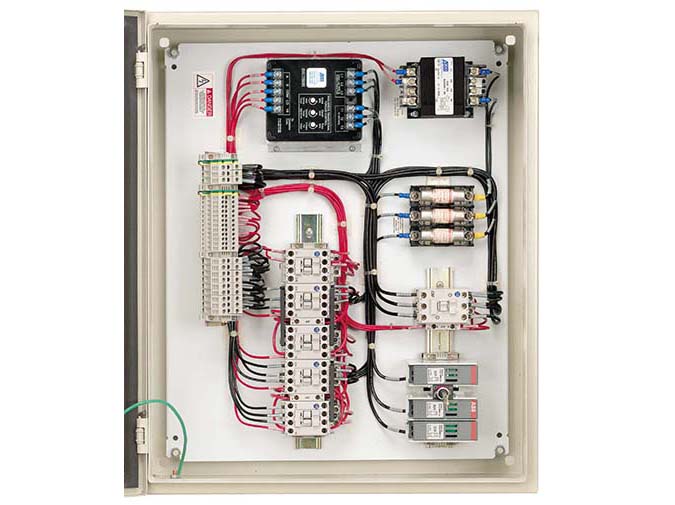

CONTROL KIT FEATURES

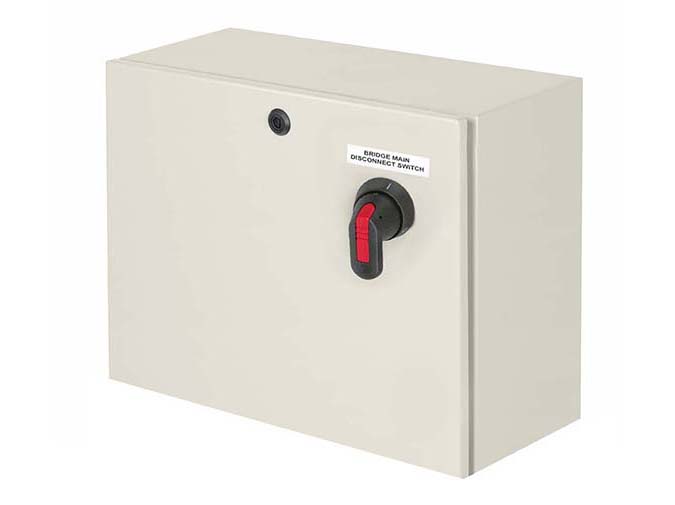

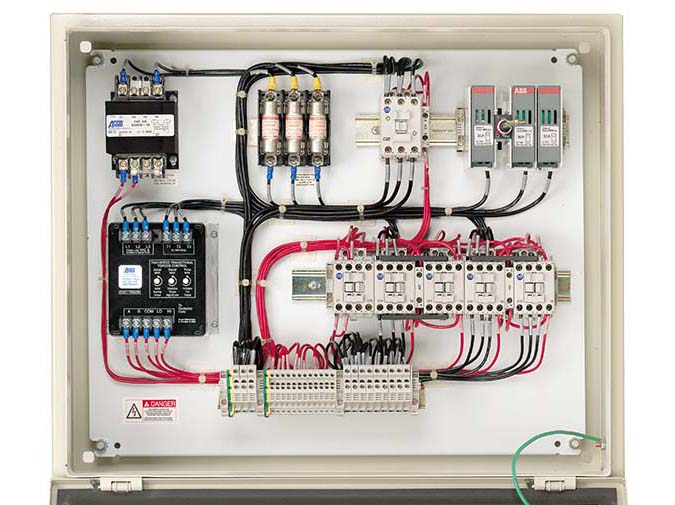

Single speed control kits consist of reversing contactors, 100 VA control transformer (115 volt is standard), mainline contactor, ACM, and fuse block (less fuses). All of these features are enclosed in a NEMA 4/12 steel cabinet with a hinged door and a 30 amp through the door manual disconnect switch.

ACM (Acceleration Control Module)
The WRIGHT® ACM control is a solid-state control that supplements single speed, three phase trolley and bridge motor controls to regulate the starting torque and acceleration. It checks the initial rush of current to the motor, and allows smooth acceleration from start to full rated speed.

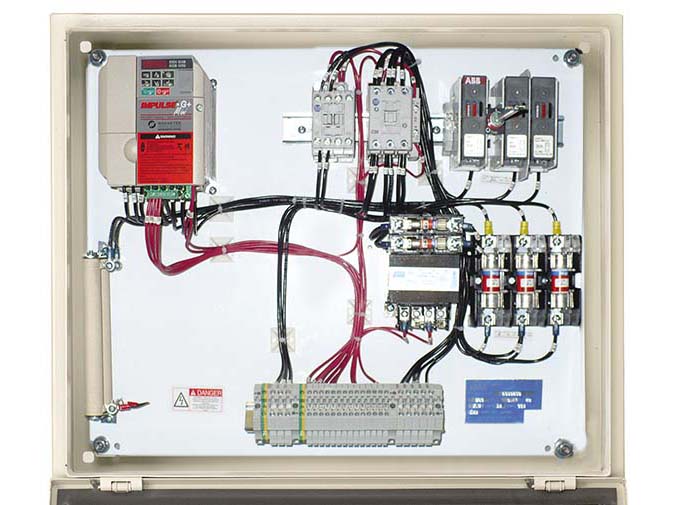

VFD (Variable Frequency Drive)
The variable frequency drive control kit has the same features as the single speed control kit only the reversing contactors are replaced with an Electromotive IMPULSE G+ and CMAA Class “C” braking resistors. Thermal overload protection is also included. The VFD is factory preset at 2 speed for a 3:1 speed ratio.
