ACCOLIFT® Low Headroom Hoists

Features

Option Placeholder Image

The friction clutch is an overload protection device that prevents lifting when overloaded. When the hoist is raised to high ...Read More

Friction Clutch & Upper Limit Switch
Weston Style Mechhanical Load Brake

Weston Style Mechanical Load Brake, working in conjunction with disc type motor brake, provides a dual braking system for load ...Read More

Weston Style Mechanical Load Brake
Hoist Motor Brake

Simple fast acting conical style motor brake for years of trouble-free operation.

Hoist Motor Brake
Push-Button-Control

Compact design to enable one-handed operation. Rated NEMA 4 protection. Mushroom on/off button included. Push button cable has strain relief ...Read More

Push Button Controls
Electric Control Panel

Single speed hoists are reconnectable for 208/230/460V power supply. Controls are housed in a NEMA 12 enclosure. Standard control transformer ...Read More

Electric Control Panel Available with Variable Frequency Drive (VFD) for all motions
Variable Frequency Drive

VFD hoists are available programmed for 2-speed operation. VFD hoists can be supplied for 230-1-60, 208/230-3-60 and 460-3-60 power supplies. ...Read More

Variable Frequency Drive
Heavy-Duty-Hoist-Motor

The hoist motor is a high torque design and is rated 30-minute duty (single phase, single speed motors are rated ...Read More

Heavy-Duty Hoist Motor
Load-Sheave-Chain-Guide

Full floating chain guide assures proper engagement of chain on load sheave. Load Sheave features 4 or 5 pockets (depending ...Read More

Load Sheave / Chain Guide
Load Chain

Grade 80 load chain is case hardened and has a high resistance to wear and corrosion. All hoists are stocked ...Read More

Grade 80 load chain
Hooks

Load hook is a forged carbon steel hook with a heavy-duty hook latch. Thrust bearing in hook allows 360˚ rotation ...Read More

Hooks
Chain Container

Chain container is standard equipment and is either molded with thick polypropylene material or fabricated from steel to securely contain ...Read More

Chain Container
Gear Box Oil Lubrication

The gearbox utilizes an alloy steel helical and spur gear reduction. Gear lubrication is easily accessible from the top of ...Read More

Gearbox/Oil Lubrication
Push-Pull Trolley

Trolley is adjustable for a range of 3.25” to 12” flange widths with no additional materials required. Side guide rollers ...Read More

Push/Pull Trolley
Motorized-Trolley

Trolley is adjustable for a range of 3.25” to 12” flange widths with no additional materials required. Side guide rollers ...Read More

Motorized Trolley

Options

Nickel Plated Load Chain Option

Typically used for outdoor use to prevent corrosion and extend chain life.

Electroless Nickel Plated Load Chain
48V Control Option

Typically used as a safety feature to reduce voltage at the pendant

48V Control Voltage
Option Chain Container

Typically used to reduce chain noise when the chain falls into the chain container during operation, and to reduce interference.

Canvas Chain Container
Collector Mount

Typically used to support mounted collectors or festoon systems to power hoist

Collector Mounting Bracket/Tagline Tow Arm
Push-Button-Control

Select this option to add additional buttons to the standard push button pendant. Hook mounted and push/pull trolley hoist pendants ...Read More

Push Button Pendants
Option Placeholder Image

Typically used to allow remote control of hoist independent of pendant. Includes 1 receiver, 2 transmitters pendant backup, and warning ...Read More

Radio Control

Models & Specs

Low Headroom Hoists

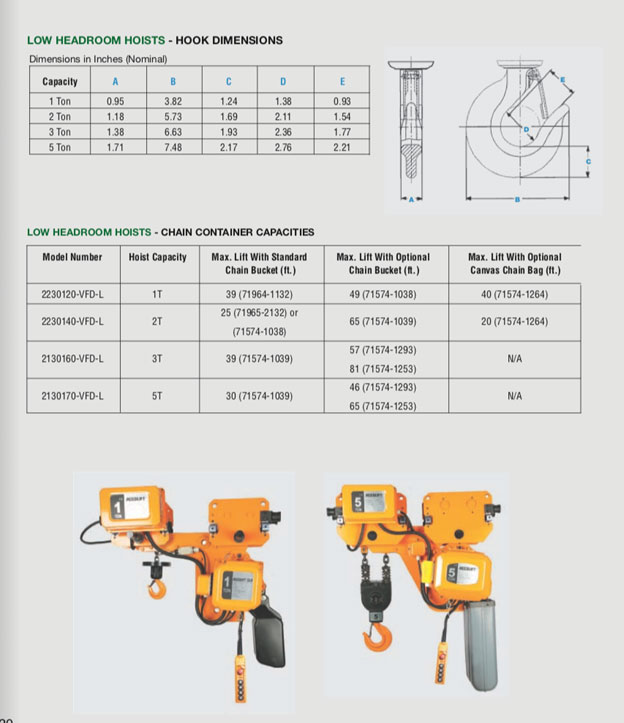

Low Headroom Hook Dimensions

Gallery

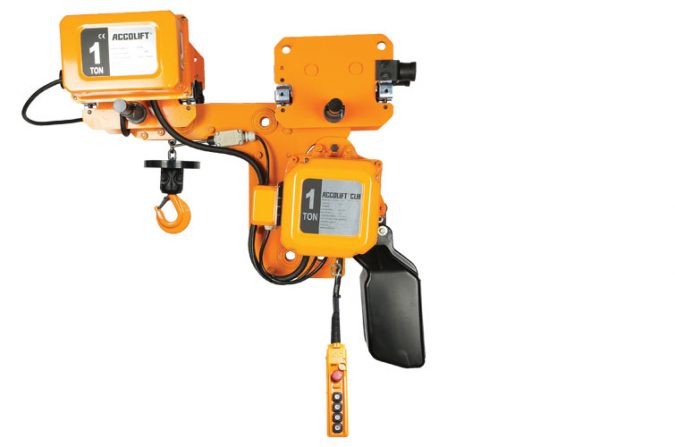

ACCOLIFT® Low Headroom Hoists

Product Overview

The Accolift and Accolift CLH models are available in low headroom configurations. The headroom refers to the base of the hook to the part of the beam/track where the hoist attaches. Close headroom hoists accommodate low headroom applications as well as building restrictions within the industrial world. Available in 1 & 2 ton models (clutch hoist | CLH) or 3 & 5 ton models (mechanical load brake | MLB), depending on the capacity needed, we can design a low head room hoist suitable for your specific application.

Equipped with the same features as the traditional Accolift hoists, the Accolift Low Headroom Hoists come standard with the following features:

  • Hoist Motor Brake is conical ( 1 & 2 ton models)
  • DC Brake (3 & 5 ton models)
  • Friction Clutch and Upper Limit Switch (1T & 2T models)
  • Weston Style Mechanical Load Brake (3T & 5T models)
  • Push Button Controls
  • Electric Control Panel Available with Variable Frequency Drive (VFD)
  • Heavy-Duty Hoist Motor rated for 30-minute duty
  • Load Sheave / Chain Guide
  • Grade 80 load chain
  • Forged carbon steel hook with a heavy-duty hook latch
  • Chain Container
  • Gearbox with alloy steel helical and spur gear reduction

ACCOLIFT® LOW HEADROOM Electric Chain Hoists are available with options:

  • Additional Lift
  • Nickel Plated Load Chain
  • Rain Covers for Hoist and Control Enclosure
  • 48V Control Voltage
  • Additional Pendant Buttons
