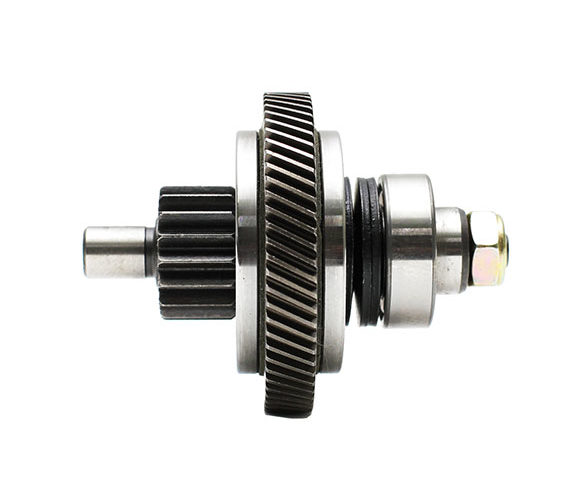

The friction clutch is an overload protection device that prevents lifting when overloaded. When the hoist is raised to high hook or low hook, a micro switch is activated and stops the hoist motor. This prevents unnecessary clutch & motor wear.
Compact design to enable one-handed operation. Stepless control model pendants include stepless buttons (no detent between slow to fast). Mushroom on/off button included. Push button cable has strain relief built in to prevent cable damage. Pendant is rated IP65.

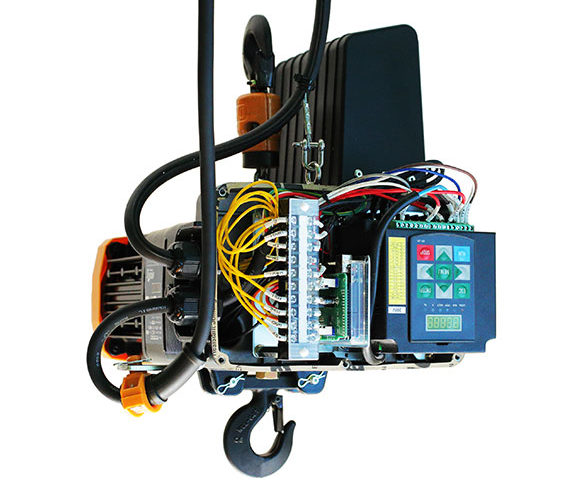

Single speed, single phase hoists are reconnectable for 115/208/230V power supply. Single speed, three phase hoists are reconnectable for 208/230/460V power supply. VFD-controlled hoists are voltage specific and are stepless control allowing precise load control. Single speed contactor hoists use a 115VAC control circuit while VFD hoists with stepless control use a 24VDC control circuit. Standard power supply cord length is 15’. Enclosure is rated IP55.

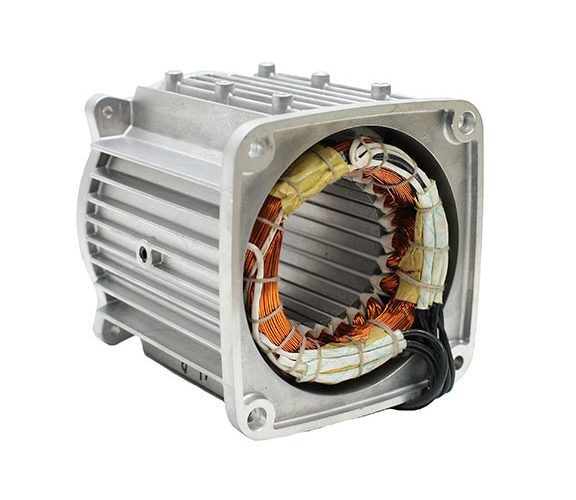

The 1HP hoist motor is a high torque heavy-duty design and is rated 30-minute duty (single phase motors are rated 20-minute). Class F motor insulation and standard thermal motor protection (built in thermal sensor) is provided.

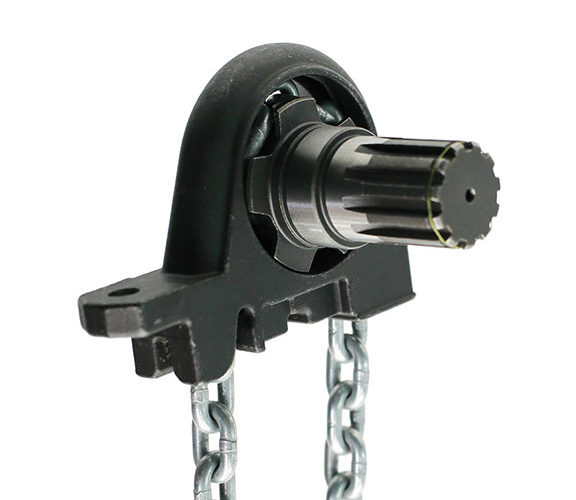

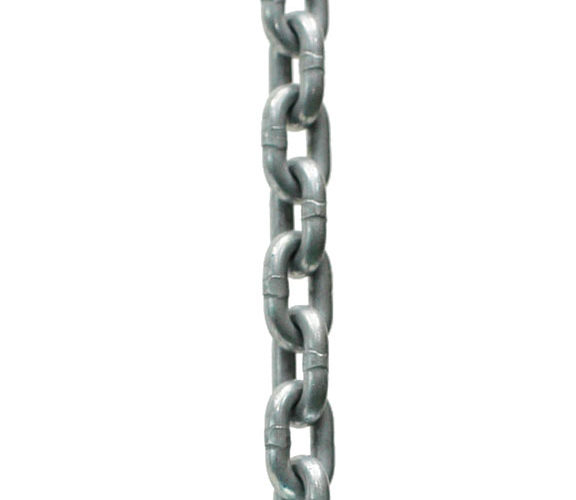

Standard load chain is galvanized Grade 80 which is case hardened and has a high resistance to wear and corrosion. All hoists are stocked with 20 feet of lift. Longer lifts are available per application. Nickel Plated load chain is available as an option.
Load hook is a forged carbon steel hook with a heavy-duty latch. Thrust bearing in load hook allows 360-degree rotation to prevent twisting of load chain. Top hook, for hook suspended units, is non-rotating. Top lug connectors are packaged with all hook mounted hoists for attachment to light rail trolleys. Top hook & lug can be switched out easily with two pins.

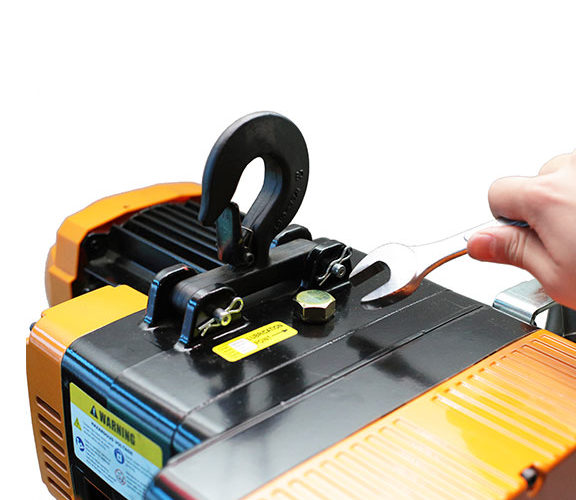

The gearbox utilizes an alloy steel helical and spur gear reduction. Gear lubrication is easily accessible from the top of the hoist. The gearbox includes an oil fill plug, oil level plug and oil drain plug for ease of maintenance.

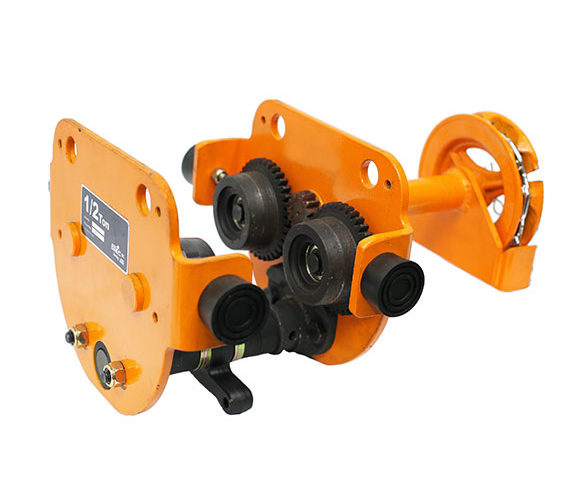

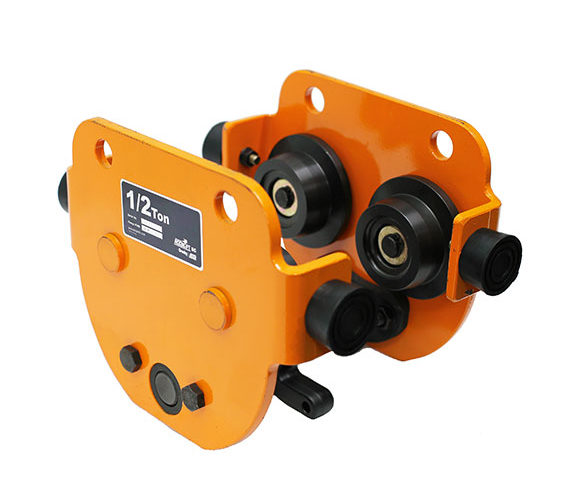

Trolley is adjustable for a range of 2” to 8” flange widths with no additional materials required. Standard hand chain drop is 18’. Rubber bumpers, dual tread flanged wheels and drop lugs are provided as standard.

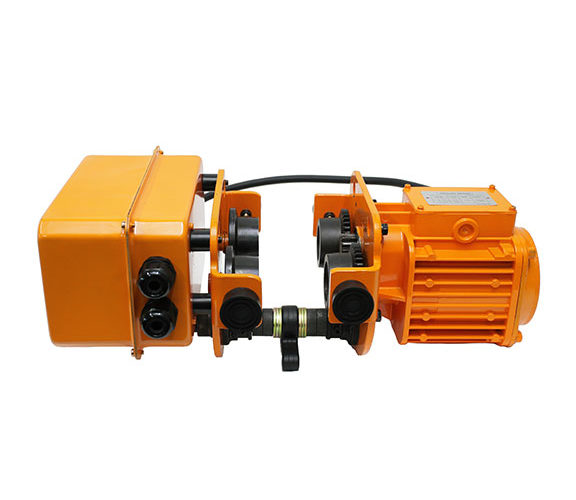

Trolley is adjustable for a range of 2” to 8” flange widths with no additional materials required. Rubber bumpers, dual tread flanged wheels and drop lugs are provided as standard. Motor is rated 30-minute duty (single phase motors are rated 20-minute). Class F motor insulation, standard thermal motor protection (built in thermal sensor) and conical pull-rotor style motor brake is provided.
ACCOLIFT® SC Electric Chain Hoists are specifically designed to offer reduced headroom and weight reduction for maximum portability and performance on light capacity enclosed track and jib applications. The SC, for ‘stepless control,’ provides infinitely variable hoist lift speed for improved safety and control. The SC Hoist accelerates with the push of a button and stops on command providing maximum control over the load.
