Motorized Trolleys

Features

Option Placeholder Image

30-min duty motor with class F insulation, thermal protection and motor brake.

Motor
Option Placeholder Image

VFD control programmed for two speed operation

Three Phase Control
Option Placeholder Image

Contactor control provided for single speed operation

Single Phase Control
Option Placeholder Image

Side plates are rugged rolled steel

Side Frame
Option Placeholder Image

Crown tread allows operation on tapered or flat flange beams

Wheels
Option Placeholder Image

Shielded, lifetime lubricated, single row ball bearings

Bearings
Option Placeholder Image

Pivot mounted suspension shaft designed to equally distribute the load to all wheels

Suspension Lug

Models & Specs

Motorized Trolleys

Gallery

Motorized Trolleys

Product Overview

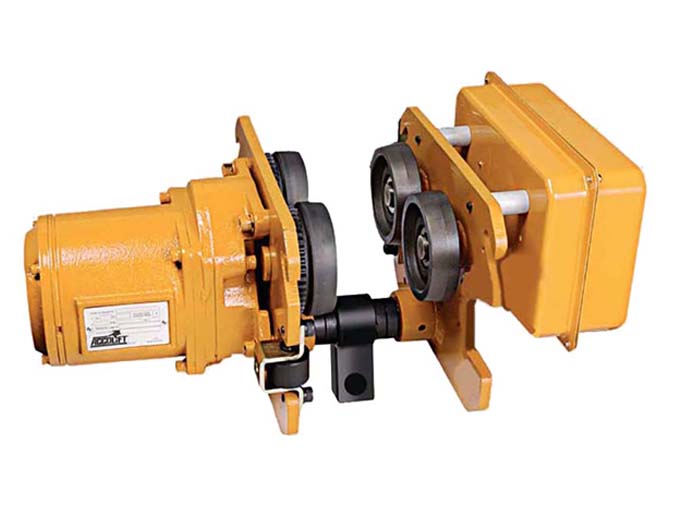

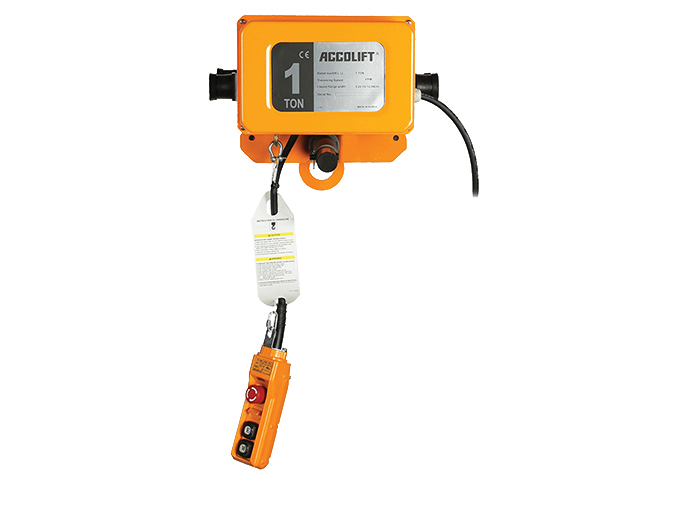

Accolift Motorized Trolleys are rugged in design and built to be flexible right out of the box. Each trolley is adjustable for a beam flange range of 3.25″ to 12″ with no additional materials required. Side guide rollers are included to promote smooth trolley motion and to minimize wheel and beam flange wear. Wheels are dual tread design for operation on tapered or flat flange beams. Trolleys include drop down lugs and rubber bumpers as standard equipment. Motor includes class F insulation and a disc type motor brake. Motor is rated for 30-minute duty and includes standard thermal protection. Three phase trolleys include a VFD control, 2-button pendant, control transformer and a 30′ power cord. Single phase trolleys include a single speed contactor control, 2-button pendant and a 30′ power cord.

Motorized Trolleys
