WRIGHT® Model 80 Geared Trolleys

Features

Option Placeholder Image

Side plates are rugged rolled steel

Side Frame
Option Placeholder Image

1/2 to 2 tons capacity; 4” diameter, flanged, dual tread, heat-treated gray iron, will operate on American Standard “S” shape ...Read More

Wheels
Option Placeholder Image

Shielded, lifetime lubricated, single row ball bearings

Bearings
Option Placeholder Image

Electric welded, close link zinc plated chain, accurately and uniformly sized to seat properly in handwheel pockets

Hand Chain
Option Placeholder Image

Steel chain guide

Chain Guide

Models & Specs

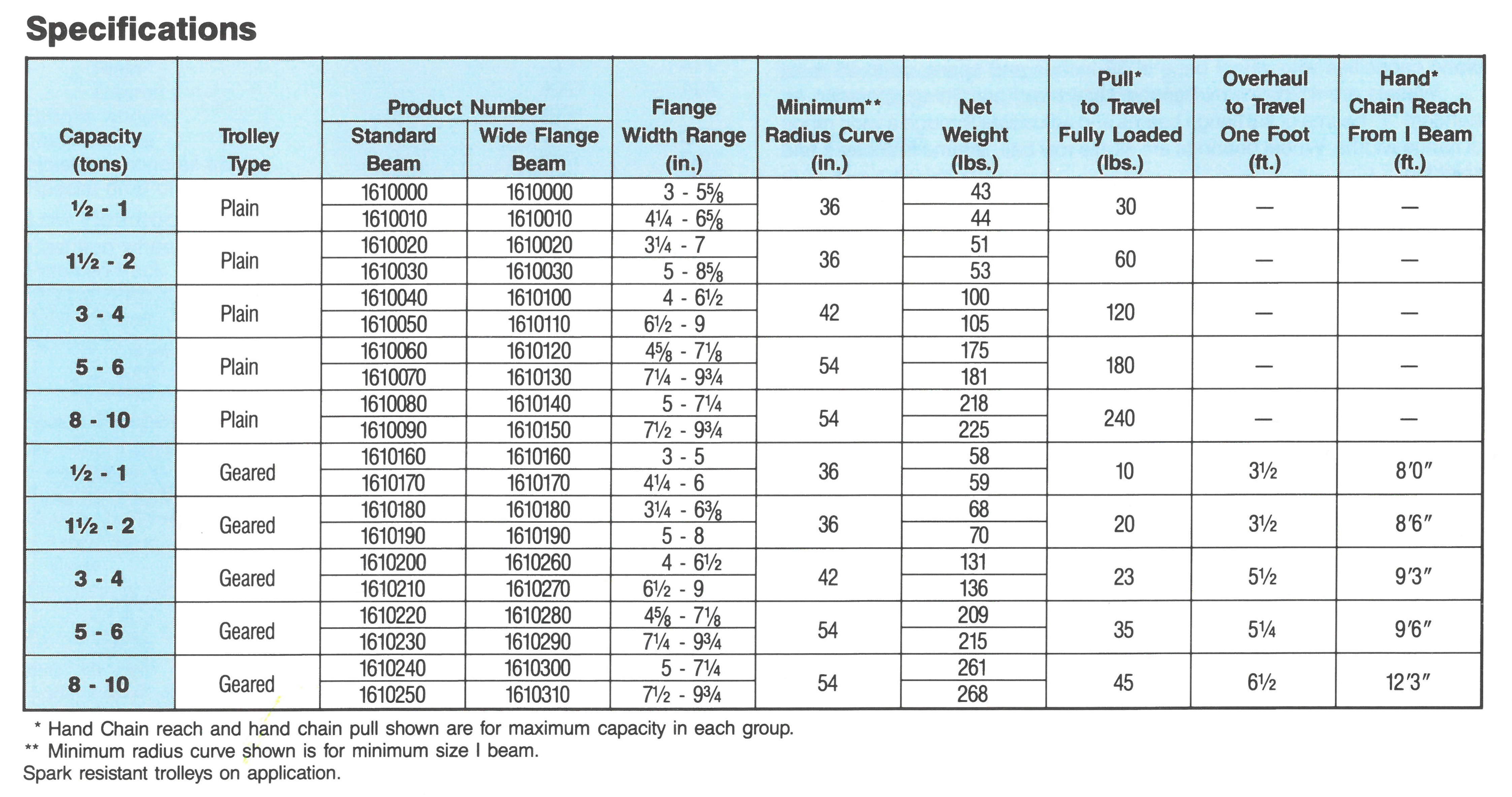

Model 80 Plain & Geared Trolleys - Specifications

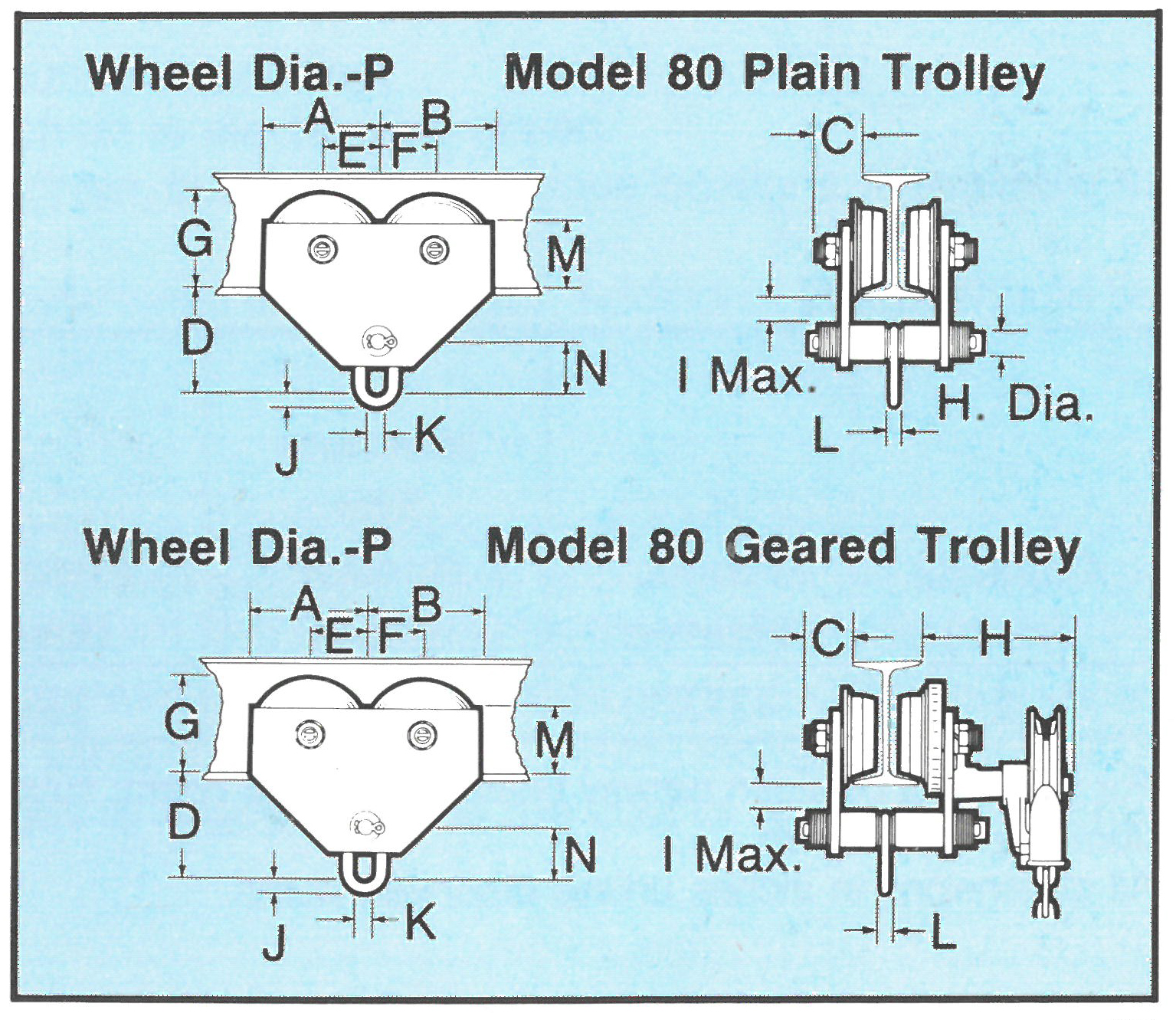

Model 80 Plain & Geared Trolleys - Diagram

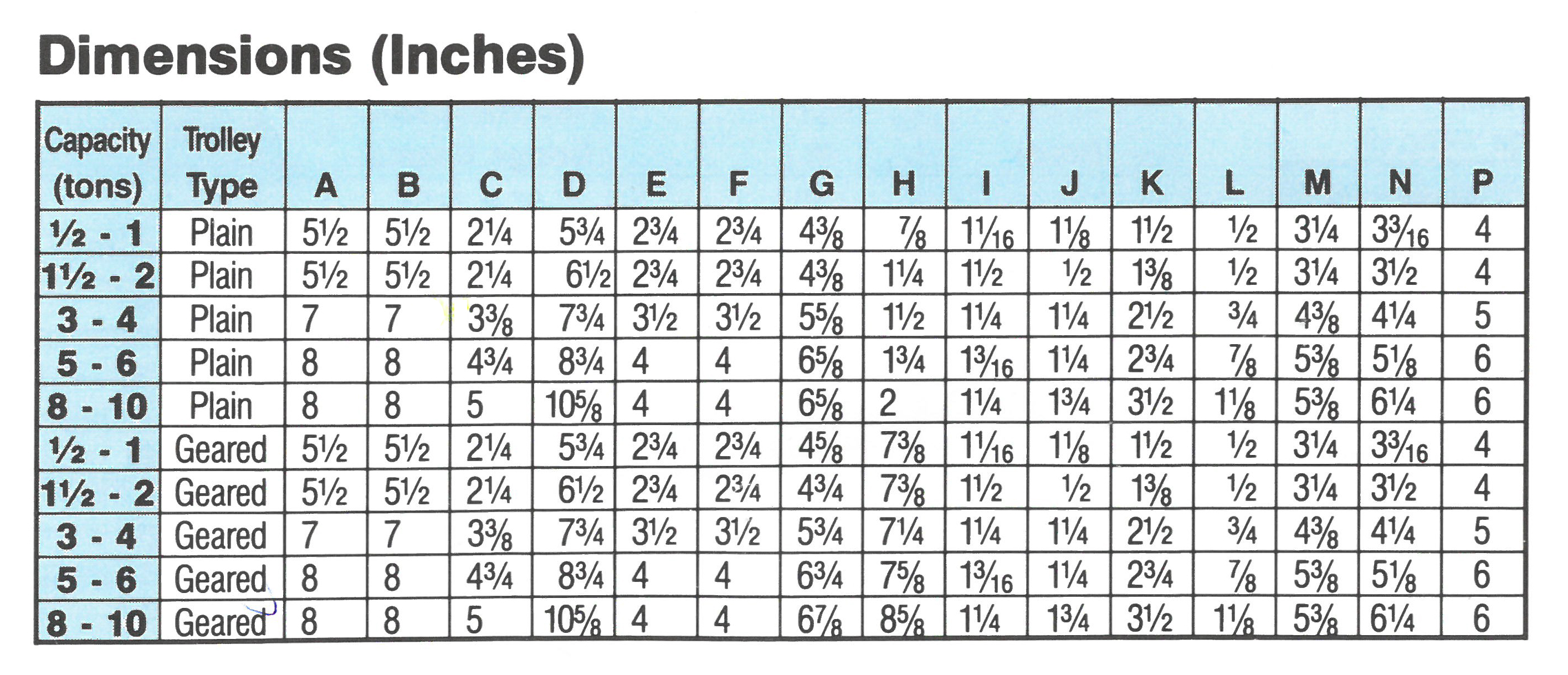

Model 80 Plain & Geared Trolleys - Dimensions

Gallery

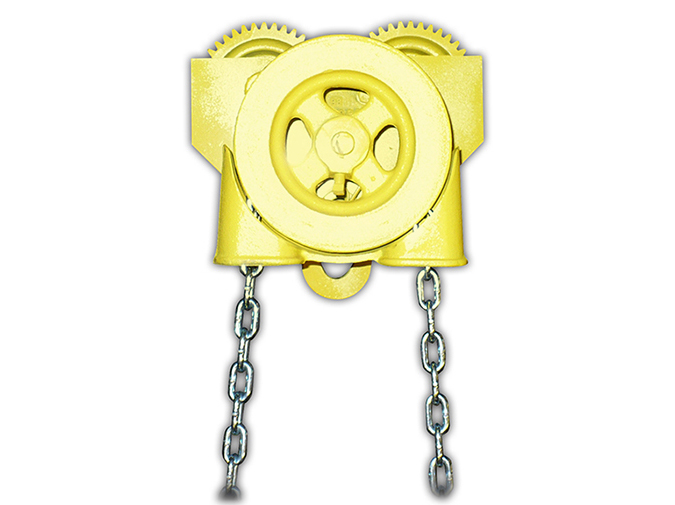

WRIGHT® Model 80 Geared Trolleys

Product Overview

The geared trolley has a cast handwheel, chain guide and operating chain, and two plain and two geared wheels. Geared trolleys precisely spot the load and are recommended for beams over 16 feet above the floor.

WRIGHT Model 80 Geared Trolleys
