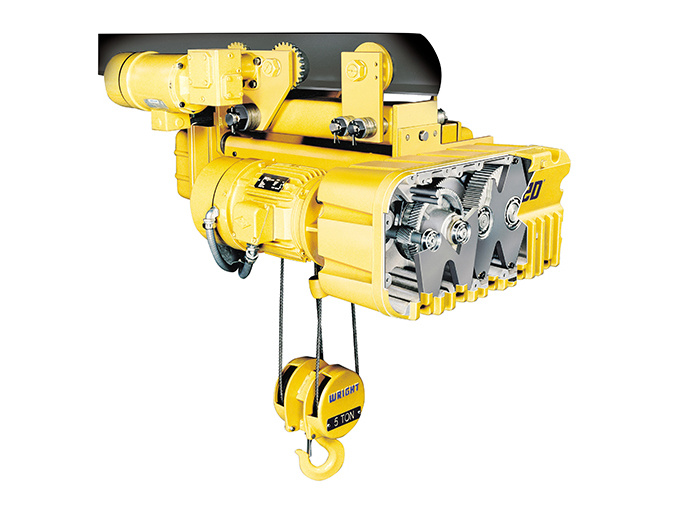

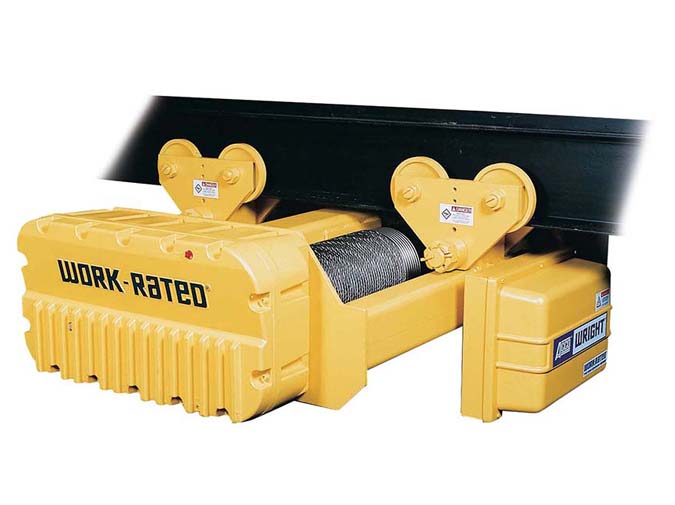

WRIGHT® WORK-RATED® Hoists (1-25 Tons)

Features

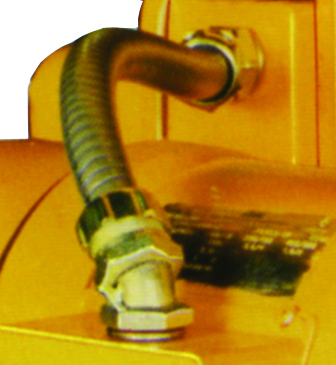

Basic Controls

Choose from single, 2-speed, or inverter. Controls are magnetic reversing type, mechanically and electrically interlocked with 115-volt control circuit. All ...Read More

Controls
Option Placeholder Image

Push button stations are not furnished as standard equipment with these hoists. Push button station drop of cord & strain ...Read More

Push Button Stations (Optional)

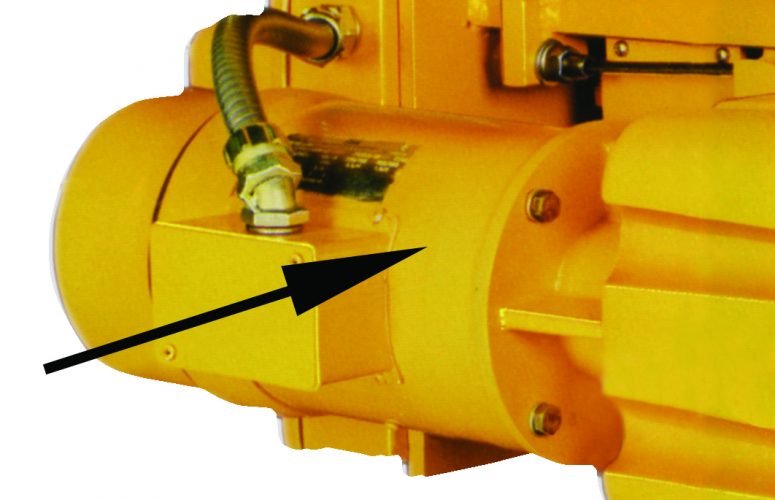

Motor WSH

Standard NEMA C face mounting, TENV, Class F insulation, 30-minute duty motor is provided for standard commercial power supplies. The ...Read More

Motor

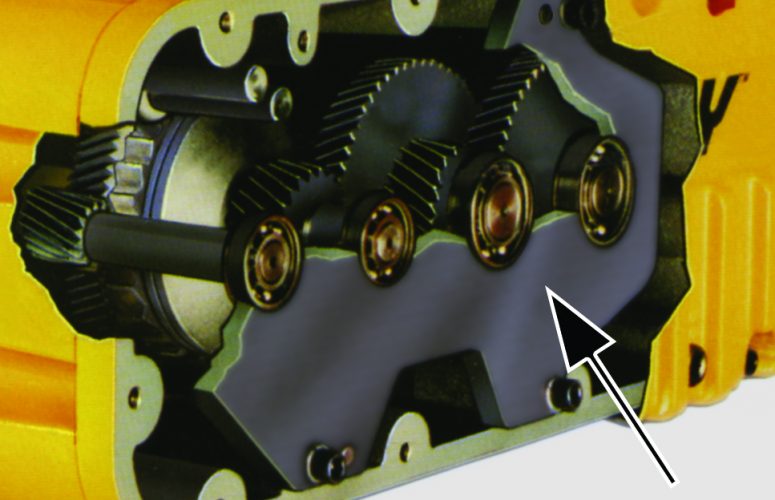

Bearings - Spider Retainer WWH

Precision heavy-duty ball bearings support all shafts. All bearings are either splash lubricated, or lifetime pre-lubricated and sealed. Bearings at ...Read More

Bearings - Spider Retainer
Option Placeholder Image

The large diameter steel drum has machined grooves and large flanges. At least two full turns of rope remain on ...Read More

Drum

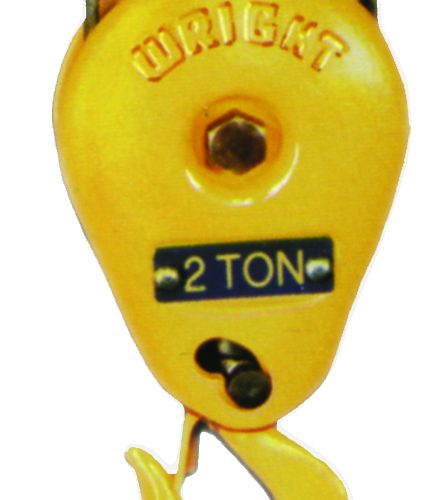

Load Block

Drop forged heat-treated steel hook swivels 360˚ on a shielded roller thrust bearing and comes equipped with a spring latch. ...Read More

Load Block - Hook
Option Placeholder Image

A gravity-type upper hook travel limit switch is provided. The unit is equipped with an automatic momentary lowering circuit. An ...Read More

Limit Switch
Option Placeholder Image

Protects load, hoist and operator by interrupting raising circuit when hoist senses a damaging overload. When lifting circuit is interrupted, ...Read More

Overload Cutoff
Option Placeholder Image

The trolley frame is built of steel and precision machined to assure proper alignment of trolley wheels and drives.

Trolley Frame
Option Placeholder Image

Trolley wheels have tread surfaces machined and hardened to 375-425 Brinell. Each wheel is supported on anti-friction bearings suitable to ...Read More

Trolley Wheels
Option Placeholder Image

The trolley drive is a right-angle worm gear reducer fully enclosed with a steel worm and bronze worm designed to ...Read More

Trolley Drive
Option Placeholder Image

Choose from single, 2-speed, or inverter controls. Single and 2-speed controls are available with ACM solid state cushion start for ...Read More

Trolley Controls

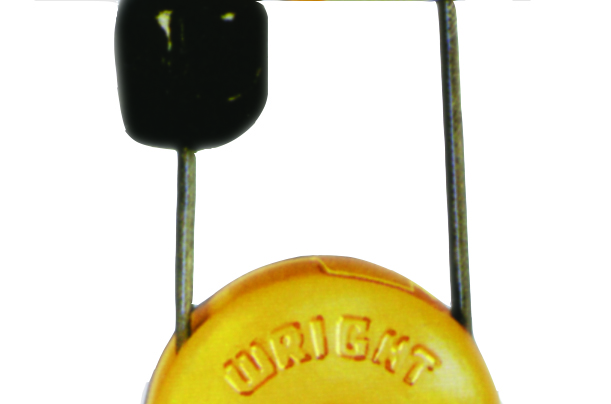

Wire Rope Feature

Pre-formed wire rope, of hoisting service construction, made of extra improved plow steel (XIP) with an independent wire rope center. ...Read More

Wire Rope

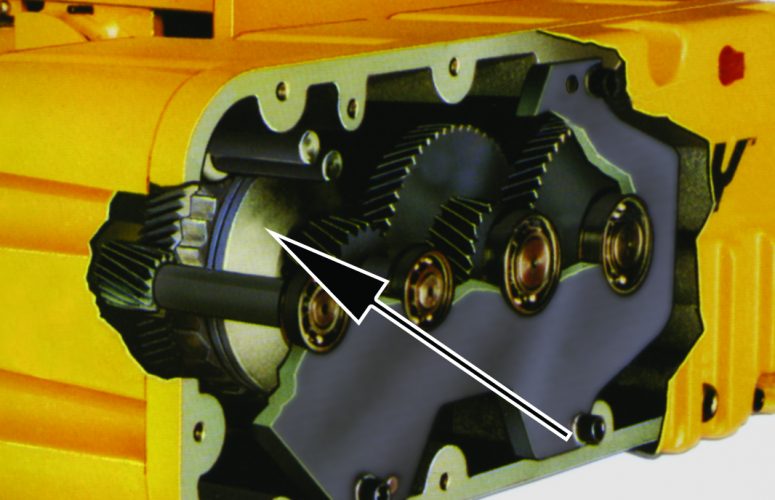

Mechanical Load Brake WSH

Automatic Weston-type multiple disc brake. It can hold a full capacity load independent of motor brake and assures that the ...Read More

Mechanical Load Brake

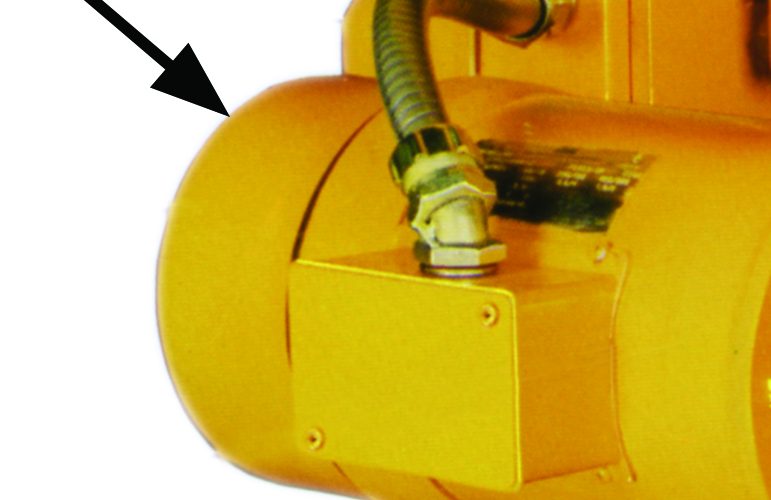

Motor Brake WWRH

Proven in millions of hours of in-service operation, the original Wright rectified D-C magnet-actuated disc brake delivers rapid stops with ...Read More

Motor Brake

Gallery

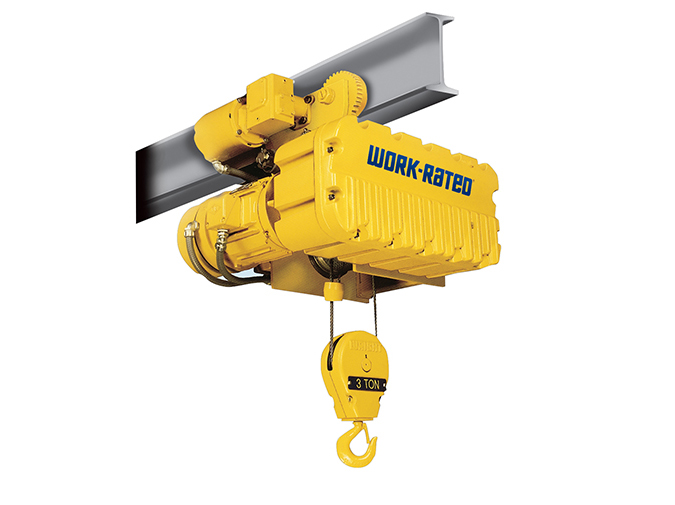

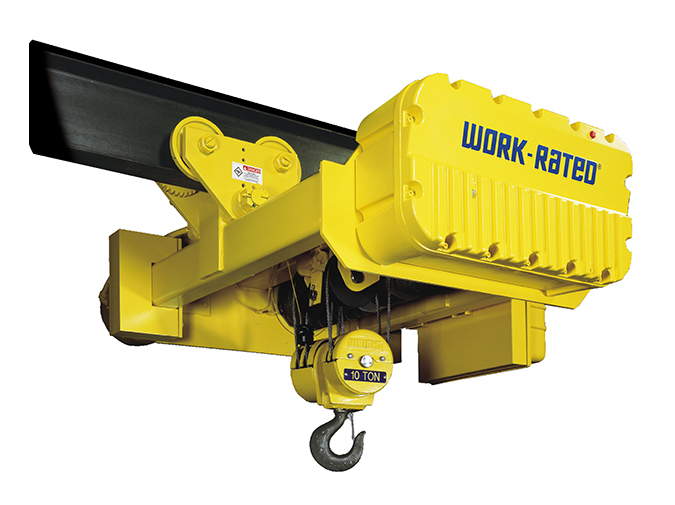

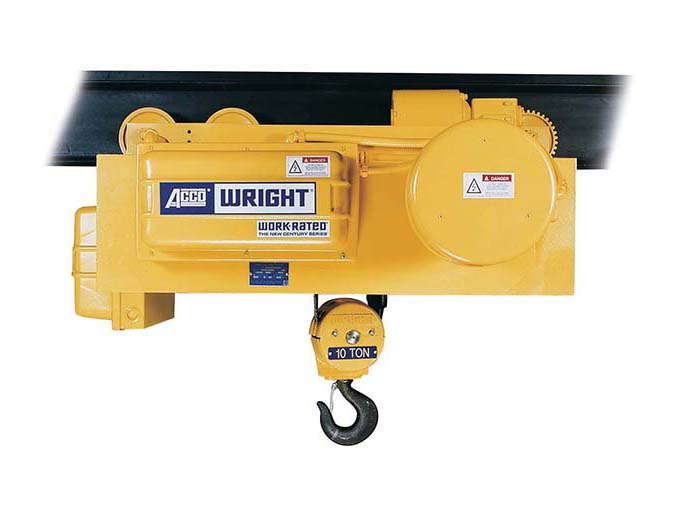

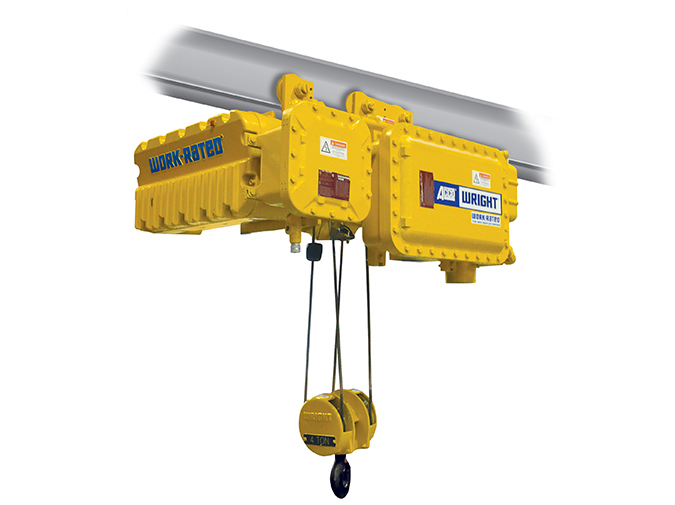

WRIGHT® WORK-RATED® Hoists (1-25 Tons)

Product Overview

Acco’s Wright® product line has been the industry leader in establishing hoist duty ratings and has made certain their hoists meet this criteria.

The Wright Work-Rated hoists are duty service classification H4. Hoists in this category are capable of high volume handling of heavy loads. Operating 30 minutes of each hour with a maximum of 300 starts an hour. Wright Work-Rated hoists meet ASME-4M, both mechanically and electrically.

Work-Rated Hoists include features like:

  • 30-minute Duty Motors
  • Long Lifts up to 206 feet
  • Mechanical Load Brake
  • Overload Cutoff
  • Single, Two Speed or VFD Controls
  • Motor Brake
  • Motor Thermostat
  • Other options are available

Wright® Work-Rated® Hoists offer options for hazardous locations, spark resistant and explosion resistant hoists.

STANDARD FEATURES

  • Choose 1, 2, 3, 5, 7-1/2, 10, 15, 20- & 25-Ton Capacity
  • Standard Speeds and Lifts Readily Available
  • Choose Lug, Plain, Geared or Motorized Trolley, Deck Mounted or Top Running Trolley
  • Standard Trolley Speeds Readily Available
  • Single and Double Reeved Models Available
  • H4 Duty Class
  • Single or Two Speed Motors
  • Choose 208V, 230V, 460V, 575V
  • Motor Thermostats
  • Overload Cutoff
  • Mechanical Load Brake
  • Motor Brake
  • Hook Travel Upper Gravity Limit Switch
  • 115V Control Circuit
  • NEMA 3R Enclosure

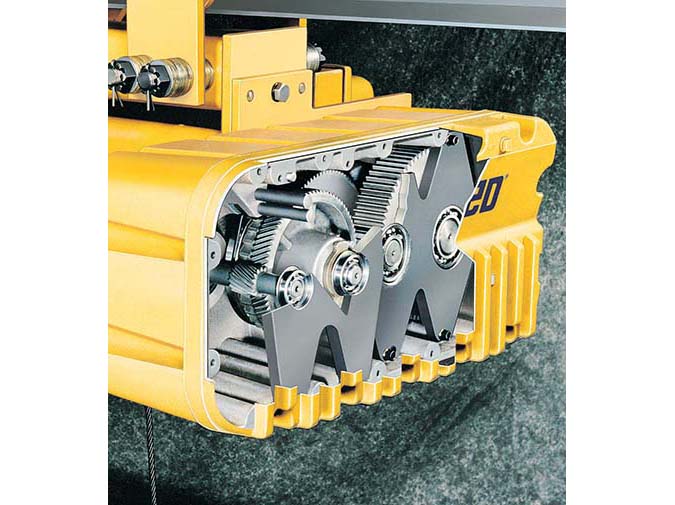

  • Machine Cut, Case Hardened, Alloy Steel Gears
  • Machined Steel Sheaves
  • Largest Oil Bath in Industry
  • Oil Sight Gauge on Housing Cover
  • Rugged, Fluted Aluminum Alloy Housing & Cover
  • Complies with ASME B30.16 and ASME HST-4M Standards

OPTIONS

  • Lifts Longer Than Cataloged Available on Application • Geared Limit Switch
  • Motor Fuse Holders and Fuses
  • Variable Speed by Inverter Control
  • Models for Hazardous Locations. Class I & II, Group C, D, E, F & G, Division I & II
  • Bullard – Type Hook
  • Trolley Modifications & Speeds
  • Operational on Patented Track
  • Trolley ACM and Brakes
  • Trolley Drop Down Lugs & Bumpers
  • Tagline Tow Arm
  • Epoxy Paints Available on Application
  • Audible or Visual Hoist Overload Indicator • Running Time Meter
  • Other Options Available
