Rapid Ship Crane Kits Top Running

Options

Speedway-Hoists-Specs

Speedway® Hoists are stocked with single speed controls for hoist and trolley motions. Inverters can be added as optional equipment. ...Read More

Speedway Hoists Specs
Work-Rated-Hoists-Specs

Work-Rated® Hoists are stocked with single speed controls for hoist and trolley motions (excluding deck mount). Inverters can be added ...Read More

Work-Rated Hoists
WRIGHT--top-running-crane-kits-Specs

WRIGHT® top running crane kits are stocked with variable speed motion. Endtrucks feature dual crane drives, AC motor brakes, US ...Read More

WRIGHT Top Running Crane Kits

Models & Specs

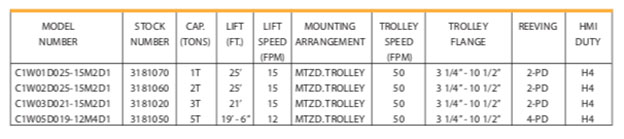

Speedway Hoists Specs
W
Speedway® Hoists are stocked with single speed controls for hoist and trolley motions. Inverters can be added as optional equipment. Hoists feature Weston style mechanical load brake, AC hoist motor brake, US manufactured motors, double reeving for true vertical lift, gravity type upper limit switch, geared upper and lower limit switch, branch circuit fuses, steel sheaves and dual tread trolley wheels. Hoists have NEMA 3R enclosure and are for 208/230/460-3-60 power supplies.

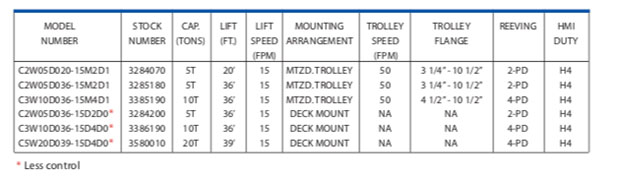

Work-Rated Hoists
W
Work-Rated® Hoists are stocked with single speed controls for hoist and trolley motions (excluding deck mount). Inverters can be added as optional equipment. Hoists feature Weston style mechanical load brake, overload cut-off device, DC hoist motor brake, US manufactured motors, double reeving for true vertical lift, gravity type upper limit switch, geared upper and lower limit switch, branch circuit fuses, steel sheaves and dual tread trolley wheels. Hoists have NEMA 3R enclosure and are for 230/460-3-60 power supplies.

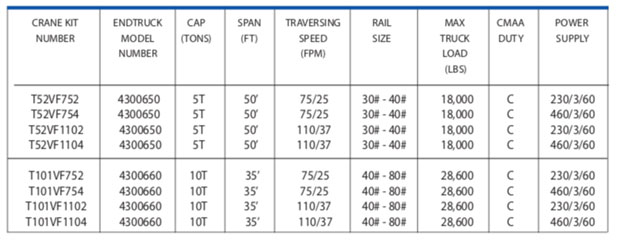

WRIGHT Top Running Crane Kits
W
WRIGHT® top running crane kits are stocked with variable speed motion. Endtrucks feature dual crane drives, AC motor brakes, US manufactured motors, girder connection mounting plates, hardened double flanged wheels with tapered treads for A.S.C.E. rail, rubber bumpers, and rail sweeps. Controls include VFD, 100 VA control transformer, mainline contactor, fuse block (less fuses), 100 VA transformer, all in a NEMA 12 enclosure with a 30 amp through the door manual disconnect switch and are for either 230-3-60 or 460-3-60.

Gallery

Rapid Ship Crane Kits Top Running

Product Overview

Introducing the fastest shipping times from Acco® on Top Running Crane Kits. Now you can order stocked configurations of Wright® Crane Kits with same day shipping. Each Top Running Crane Kit comes with (1) pair of end trucks, (1) pair of drives and (1) control.

Top Running Crane Kits

Available in 5- and 10-Ton Configurations

Rapid Ship Top Running Crane Kits feature:

  • Bolted girder connection plates
  • Double flanged wheels for A.S.C.E. rail
    (flat tread wheels available for square bar applications)
  • Dual single speed drives
  • Adjustable AC disc brakes
  • Variable speed controls
  • Rubber bumpers
  • Rail Sweeps

Same day or 24 hour shipping

Place your order for stocked configurations before 2 pm Eastern Standard Time and we’ll ship your Top Running Crane Kit the same day!

Package with a deck mounted hoist for a Top Running Trolley Hoist!
